Alternative On-Premises Connectivity Architectures
This section provides an overview of several alternative architectures to consolidate site-to-site VPN connections from your on-premises network to your AWS environment and support connectivity between your team development and workload hosting VPCs and your infrastructure shared services VPC. This information is intended to help you make a more informed decision as you considered the recommended approach of using AWS Transit Gateway.
AWS Site-to-Site VPN Virtual Private Gateway per VPC and VPC Peering
We don’t recommend using the following architecture. It’s included only to demonstrate the implications of using more of a point-to-point approach to integrating site-to-site VPN connections with VPCs. We recommend that you consolidate such connections by using either the AWS Transit Gateway based architecture or, if conditions warrant, a transit VPC architecture that is introduced below.
In this architecture, you establish a site-to-site VPN connection to each of your VPCs and use VPC peering to provide network connectivity between your team development and workload hosting VPCs and an infrastructure shared services VPC.
- You establish a distinct VPN connection from your on-premises environment to a virtual private gateway in each VPC.
- You use VPC peering to enable VPCs to interact with services in the infrastructure shared services VPC.
AWS Service Costs
We’ll use the same assumptions concerning the number of VPCs, their dependencies, and the amount of data transferred that are used in the Transit Gateway architecture Cost Example section.
Pricing
See the following resources for the most up-to-date AWS pricing information. Prices are subject to change.
VPC Peering Costs
VPC Peering connections in the same AWS Region is charged at $0.01/GB in each direction. The same as inter-AZ pricing within the same AWS region.
| Dimension | Unit Cost | Example Monthly Cost |
|---|---|---|
| 1,000 GB data transfer from Dev, Test, and Prod VPCs to Infrastructure Shared Services VPC | $0.01/GB | $10.00 |
| 1,000 GB data transfer from Infrastructure Shared Services VPC to Dev, Test, and Prod VPCs | $0.01/GB | $10.00 |
| $20.00 |
Site-to-Site VPN Costs
- Since the VPN connection fee is $0.05 per hour, a VPN connection for one month equates to about $36.50.
- Data transfer out for data flowing from AWS to your on-premises environment is $0.09 per GB with the first GB free.
- Data transfer into AWS over a VPN connection is free.
| Dimension | Unit Cost | Example Monthly Cost |
|---|---|---|
| 4 site-to-site VPN connections | $36.50/month | $146.00 |
| 999 GB data transfer out/month | $0.09/GB | $89.91 |
| $235.91 |
Combined Costs
Combined monthly cost for site-to-site VPN + VPC peering:
| Services | Example Monthly Cost |
|---|---|
| VPC Peering | $20.00 |
| Site-to-Site VPN | $235.91 |
| Total monthly cost: | $255.91 (as compared to $388.91 for transit gateway-based example) |
Operational Costs and Architectural Considerations
The example monthly AWS service cost for this alternative architecture is less than the recommended architecture in which AWS Transit Gateway is used. However, there are some drawbacks to this alternative architecture.
Operational Costs
- Managing a VPN connection per VPC: You will need to manage and monitor a distinct VPN connection for each VPC. As you add VPCs that require connectivity to on-premises resources, you will need to add more VPN connections. Doing so will involve work in both your on-premises router and your AWS environments.
- Managing an expanding set of VPC peering relationships: As you add VPCs that need connectivity to the infrastructure shared services VPC, you’ll need to configure VPC peering relationships. If you need to enable connectivity between VPCs, you will need to add and manage more VPC peering relationships.
- Dual VPN connections for enhanced resiliency: If you intend to use multiple VPN connections to further enhance resiliency, you would need to build the additional VPN connections into your cost calculations. See Resilience in AWS Site-to-Site VPN for details on using second VPN connection.
Architectural Considerations
- Inline security filtering: If you need to include a “bump in the wire” network security capability, the VPC peering architecture does not lend itself to this architecture.
- Centralized egress filtering: If you need to include centralized internet egress filtering, the VPC peering architecture does not lend itself to this architecture.
- Transitioning to AWS Direct Connect: If you decide to use AWS Direct Connect in place of AWS Site-to-Site VPN to integrate your on-premises network with your AWS environment, you will have to migrate all of your VPCs from using VPN connections to another solution. When using a transit gateway architecture, you can replace or augment the site-to-site VPN connection with an AWS Direct Connect connection without needing to reconfigure your VPCs.

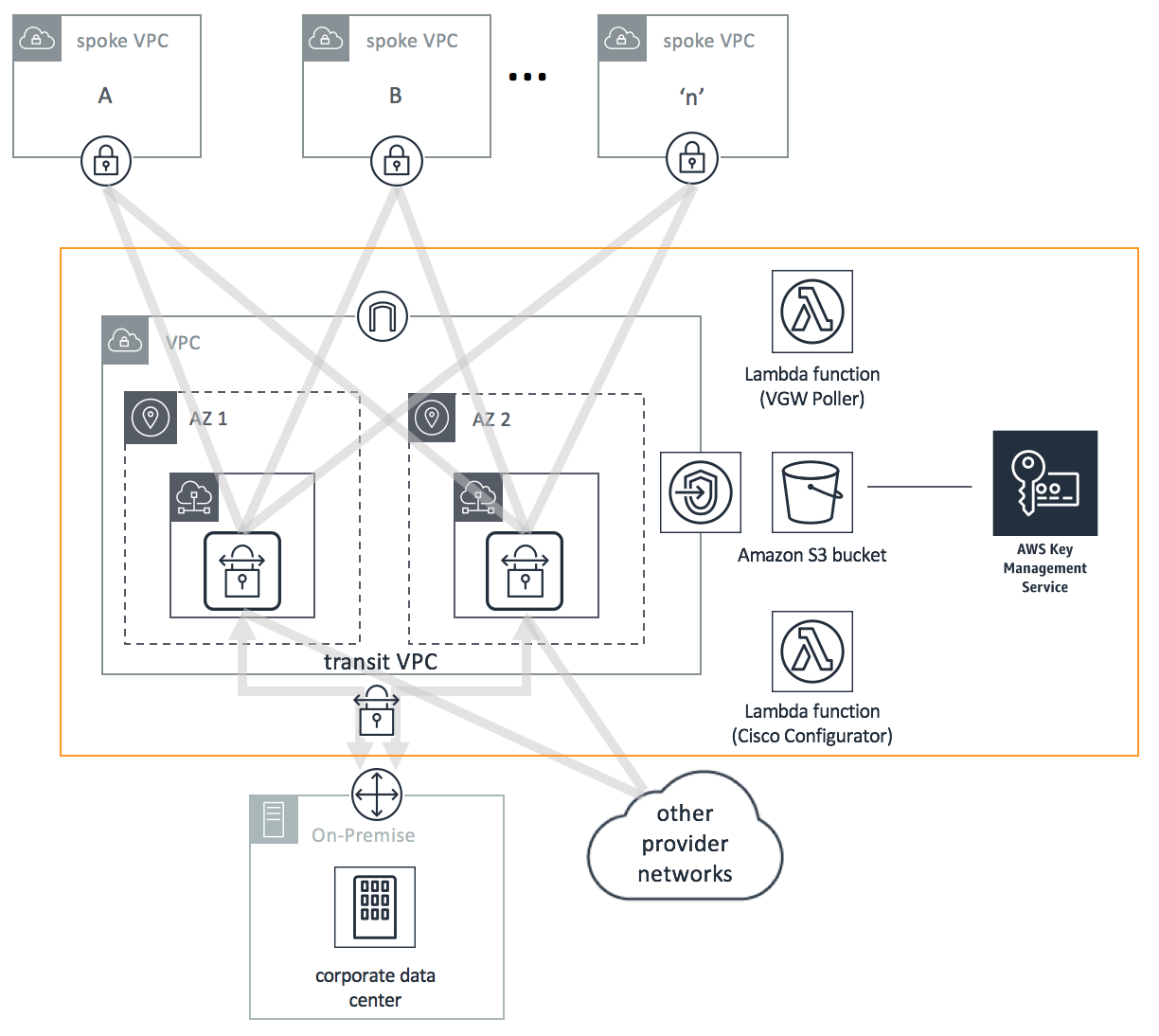

Transit VPC and Commercial Router Virtual Appliances
See the AWS Global Transit Network solution for an architecture and solution that uses commercial router virtual appliances in a transit VPC. This architecture was a common pattern used by customers prior to the advent of AWS Transit Gateway.
In this architecture, you establish a site-to-site VPN connection directly from your on-premises network to several commercial router virtual appliances that you manage in a central infrastructure transit VPC. AWS Site-to-Site VPN is not used for the on-premises to commercial router integration.
AWS Site-to-Site VPN connections are established between the router virtual appliances and a virtual private gateway in each of your VPCs.
Operational Considerations
- You need to manage and monitor a set of commercial router virtual appliances in a transit VPC.
- You need to ensure that the router deployment meets your performance and availability requirements.
Cost Considerations
The AWS Global Transit Network solution documentation outlines cost considerations.
